Part Number: F203-00T-012-01
Features and Benefits:
- ±3° operating range, ±1° linear range inclinometer
- ±0.001° repeatability angle measurements
- Dual/two-axis measurement inclinometer
- UART/TTL communications
- 5.0 V DC ±0.25 V DC supply voltage
- PCB board-level design for simple integration
- Excellent customer support

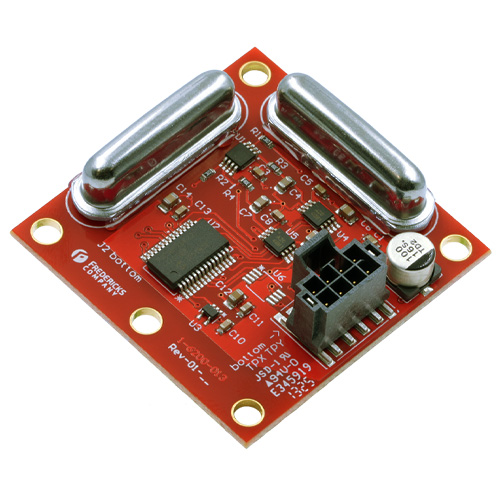

The F203-00T-012-01 dual-axis high-precision digital inclinometer sensor with UART/TTL digital communications is designed and manufactured by Fredericks for use in structural monitoring applications, construction tools, and other applications requiring very high-precision, cost-efficient, industrial-grade solution. This high-precision digital inclinometer sensor is a UART/TTL inclinometer that utilizes two Fredericks 0703-0712-99 narrow-range single-axis electrolytic tilt sensors and is mounted to our 1-6200-013 16-bit UART/TTL signal conditioner.
The use of our high-accuracy single-axis sensors and 16-bit ADCs make this inclinometer ideal for high-precision tilt measurement. This inclinometer has superior tolerances and unit-to-unit performance with an economical design, making it an excellent solution for a versatile range of applications in many sectors.
The Fredericks Company’s inclinometers take our proven electrolytic tilt sensors and combine them with electrolytic tilt sensor circuits to make inclinometer solutions for use in various markets and applications. Electrolytic tilt sensing technology makes these inclinometers extremely stable with no long-term drift compared to MEMS devices, all in a low-cost inclinometer package.
| Digital Interface | UART/TTL |
| Analog Output | None |
| Supply Voltage | 5.0 V DC ±0.25 V DC |
| Supply Current | <10 mA @ 5 V DC |
| Operating Range | ±3º |
| Linear Range | ±1º |
| Axes of Measurement | 2 |
| Linearity (% of ±1°) | ≤3% |
| Repeatability | ±0.001° |
| Null Offset | ±2° |
| Long Term Stability/Drift | ≤0.005° |
| Null Temperature Offset | 0.0005° per °C |
| Scale Temperature Offset | 0.375% per °C |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -55 °C to 125 °C |
| Time Constant (63.2% of output) | ≤1 second |
Linear Range
Operating Range
| Housing | None |

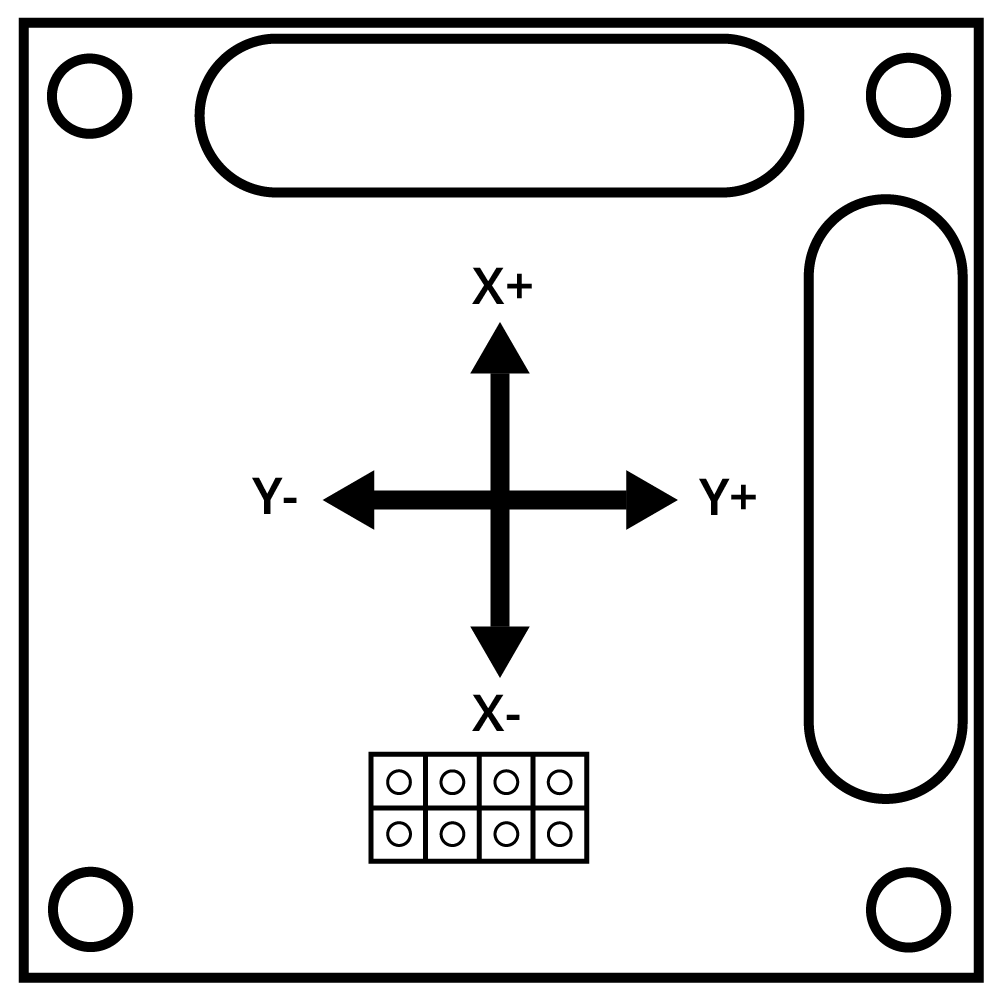

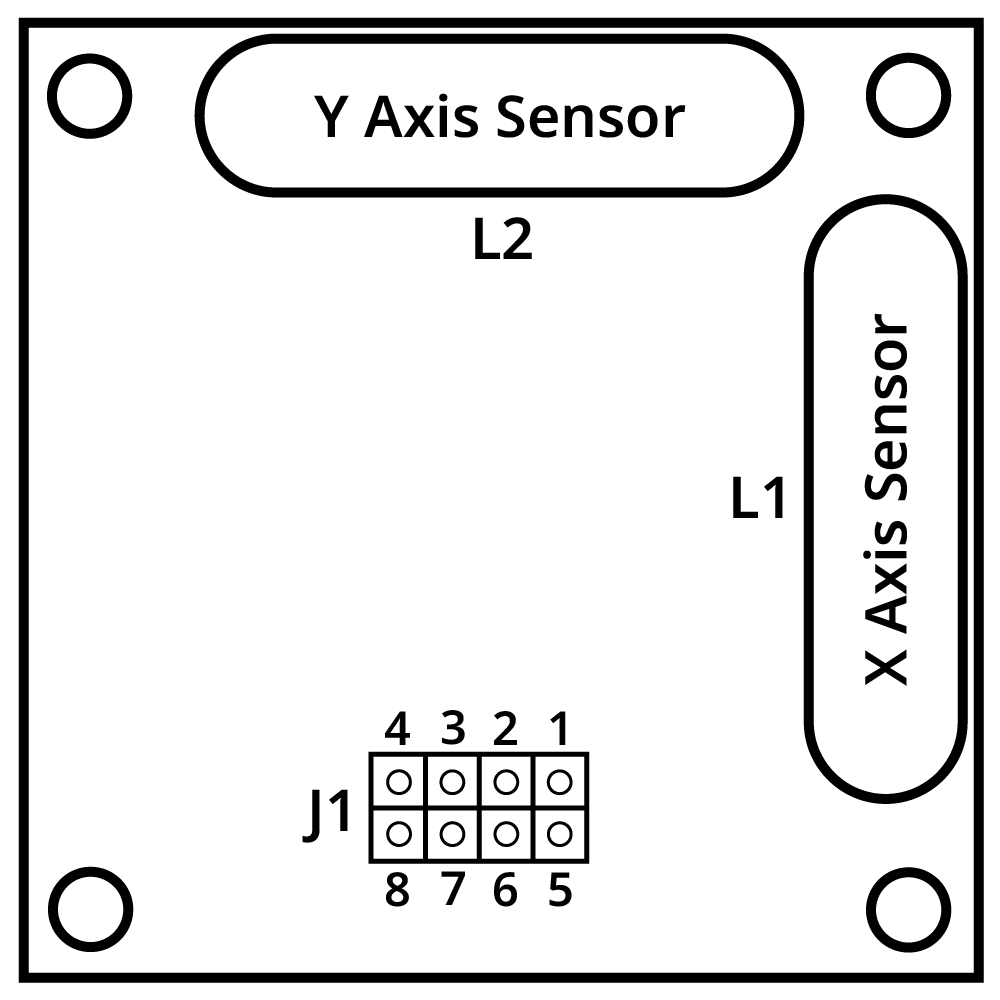

| Electrical Connections | 8-pin Molex 1054291308 |
| Mating Connector | 8-Pin Molex 1053081208 |
| Weight | 20 g |
| Length | 45 mm (1.78”) |
| Width | 45 mm (1.78”) |
| Height | 17 mm (0.65”) |
| Pin 1 | Gnd | Ground |
| Pin 2 | Vcc | Supply Voltage (+) |
| Pin 3 | TX | UART/TTL Transmit |
| Pin 4 | NC | No Connection |
| Pin 5 | Gnd | Ground |
| Pin 6 | Gnd | Ground |
| Pin 7 | NC | No Connection |
| Pin 8 | RX | UART/TTL Receive |
UART/TTL Information
| Baud Rate | 9600 (default, selectable up to 115200) |
| Data Bits | 8 |
| Parity | None |
| Stop Bits | 1 |
UART/TTL Commands
| ‘x’ or ‘X’ | X axis output (0 to 65535) |
| ‘y’ or ‘Y’ | Y axis output (0 to 65535) |
| ‘t’ or ‘T’ | Temperature output (0 to 1023) |
| ‘s’ or ‘S’ | Output X, Y, temperature at set intervals |
| ‘r’ or ‘R’ | Stop timed interval output |
| ‘1’ to ‘5’ | Set delay (in seconds) for set intervals |
| ‘v’ or ‘V’ | Product information and version |
| ‘B1’ | Set baud rate to 9600 |
| ‘B2’ | Set baud rate to 19200 |
| ‘B3’ | Set baud rate to 38400 |
| ‘B4’ | Set baud rate to 57600 |
| ‘B5’ | Set baud rate to 115200 |
| ‘?’ | List all commands |
