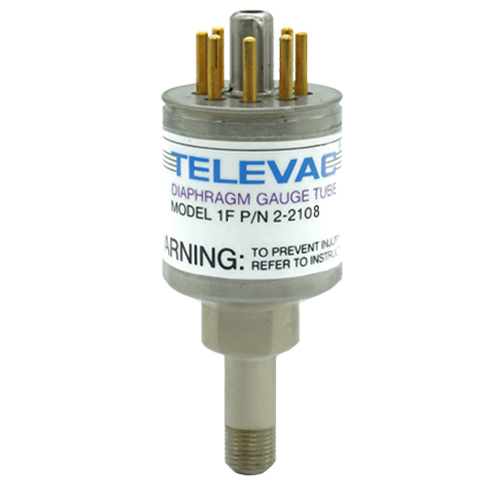

1F Piezo Diaphragm Vacuum Gauge

Part Number: 2-2108-001 and 2-2109-0XX

Our 1F piezo diaphragm gauge (also often called a vacuum pressure gauge, vacuum transducer,  or vacuum sensor) is a fast, robust, contamination resistant, and high accuracy low vacuum pressure gauge due to the piezo-diaphragm design. Note that by comparison to the 2A and 4A vacuum gauges which have a thermocouple gauge design, the 1F piezo-diaphragm vacuum sensor design is gas-independent and can be mounted in any orientation.

The 1F piezo-diaphragm vacuum sensor will read from 10 Torr (10,000 microns) to 10,000 Torr (10,000,000 microns, above atmosphere). It also has excellent accuracy over its range, and when paired with the MX200 or MM200 controllers it has ±5% to ±10% accuracy over the operating range of this vacuum gauge.

Why would you choose the 1F piezo-diaphragm vacuum gauge tube? An excellent question. Below is a list of some of the highlights of this vacuum transducer:

Televac 1F Piezo Diaphragm Vacuum Gauge – Vacuum Pressure Gauge – Vacuum Sensor Features

  • Low cost piezo-diaphragm vacuum pressure gauge
  • Compact, robust, contamination resistant vacuum transducer
  • Numerous fittings available (1/8″ NPT, NW25, NW40, CF40, among many others)
  • Drop-in vacuum pressure gauge replacement
  • Excellent customer support for vacuum transducers
  • Filters available for highly contaminated environments
1F Piezo DiaphragmPart NumberPriceBuy
1/8” NPT Nickel-plated Brass2-2108-001$230.00
Supply Current 1.5 mA
Full Scale Output 75 mV to 150 mV
0 Pressure Output >2 mV
Non Linearity +/- .05 % to .10 %
Hysteresis +/- .01 % to .05 %
In/Out Resistance 2.5 K to 6.0 K Ω
Temp Error-Span +/- .3 % to .5 %
Temp Error-Zero +/- .1 % to .5 %
Temp Hysteresis Span +/- .1 %
Temp Hysteresis Zero +/- .1 %
Response Time 1.0 mS
Output load Resistance 50 M Ω
Pressure Overload (rated) 3x max
Operating temp 0 °C to 100 °C
Acceleration 50 g max
Shock 1000 g peak for .05 ms
Vibration 20 g peak at 10 Hz to 2000 Hz
Media Non-corrosive gases
MX200 MX200 EthernetIP 4A Convection 1E Piezo Diaphragm
Measurement Range RS-232/RS-485/USB 1*10-11 to 10,000 Torr 1*10-3 to 1000 Torr 1 to 1000 Torr
Communications RS-232/RS-485/USB EthernetIP/USB None None
Analog Output 0 to 10 V DC (1 per sensor) 0 to 10 V DC (1 per sensor) Controller dependent Controller dependent
Programmable Set Points 0, 4, or 8 0, 4, or 8 None None
