Televac® CC-10 Active Wide Range Vacuum Gauge

Part Numbers: 2-7980-031, 2-7980-032, 2-7980-052


Features and Benefits:

  • Very compact wide range vacuum pressure gauge
  • Easy-to-read LED digital vacuum gauge display
  • Excellent resolution and repeatability vacuum gauge
  • Superior unit-to-unit performance between vacuum gauges
  • ISO 17025 accredited and NIST traceable calibrations optional
  • Excellent customer support for vacuum gauges

The Televac® CC-10 Wide Range Active Vacuum Gauge (also called an analog vacuum gauge, digital vacuum gauge, or vacuum pressure gauge) utilizes two internal sensors to measure full range vacuum from UHV (10-9 Torr) to above atmosphere (103 or 1000 Torr). This vacuum gauge has a variety of features including RS-485 communications, three programmable set points, and a selectable analog vacuum pressure gauge output.

The bright LED digital vacuum gauge display makes it easy to read from a distance. Options on this wide range vacuum pressure gauge can be set from four touch controls on the front of the unit or through RS-485 communications. This vacuum gauge offers an extensive selection of fittings, simple use, and easy sensor replacement making it an excellent choice for a variety of vacuum applications.

CC-10 Wide Range Active Vacuum Gauge

Product Description
Price
Calibration
Quantity
NW25/KF25 Stainless Steel
NW25/KF25 Stainless Steel
PN: 2-7980-031
$2,130.00

NW40/KF40 Stainless Steel
NW40/KF40 Stainless Steel
PN: 2-7980-032
$2,135.00

CF40/2.75
CF40/2.75" CF-F Stainless Steel
PN: 2-7980-052
$2,150.00

D-Sub 15, 15 Conductor Cable (Flying Leads)

Product Description
Price
Quantity
10′ D-Sub 15, 15 Conductor Cable (Flying Leads)
10′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-010
$305.00
20′ D-Sub 15, 15 Conductor Cable (Flying Leads)
20′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-020
$390.00
35′ D-Sub 15, 15 Conductor Cable (Flying Leads)
35′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-035
$625.00
50′ D-Sub 15, 15 Conductor Cable (Flying Leads)
50′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-050
$760.00
65′ D-Sub 15, 15 Conductor Cable (Flying Leads)
65′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-065
$885.00
100′ D-Sub 15, 15 Conductor Cable (Flying Leads)
100′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-100
$1,355.00

Wall Power Supply

Product Description
Price
Quantity
100-240 V AC/47-63 Hz, Plug Types A, C, G, I
100-240 V AC/47-63 Hz, Plug Types A, C, G, I
PN: 2-7900-097
$160.00

Replacement Parts

Product Description
Price
Quantity
Anode Assembly
Anode Assembly
PN: 2-7900-099
$675.00
Operating Range 1*10-9 Torr to 1000 Torr
Communications RS-485
Analog Output 0 V to 10 V linear/logarithmic
Programmable Set Points 3 relays
Supply Voltage 22 V DC to 26 V DC
Maximum Power 8 W
Calibration Medium Dry air or nitrogen
Overpressure 150 PSI
Digital Output Resolution 2 significant digits with exponent
Analog Output Resolution 16 bits
Operating Temperature 0 °C to 50 °C
Storage Temperature -40 °C to 85 °C
Bakeout Temperature 110 °C (electronics removed)
Response Time ≤500 ms
Display Readable Display 4 m (13 ft)
Accuracy
10-9 Torr to 10-1 Torr ±0.2 of decade
10-1 Torr to 200 Torr ±15% of reading
200 Torr to 1000 Torr ±5% of reading
Analog Output ±10 mV

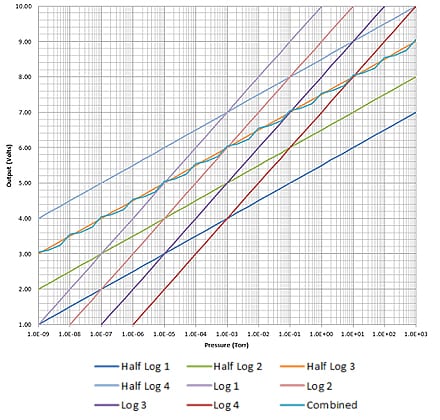

Graph of the analog output behavior for the Televac® CC-10 Wide Range Active Vacuum Gauge.

Legend for the CC-10 Wide Range analog output behavior graph

Pin Description
1 Analog Out (Ground)
2 RS-485 A (-)
3 SP3 Out
4 SP2 Out
5 SP1 Out
6 Zero adjust input (signal in)
7 EXT Vcc (signal in)
8 Supply Voltage (+)
9 Analog Out (0 to 10) V
10 RS-485 B (+)
11 SP2, SP3 COM
12 SP1 COM
13 HV inhibit signal (signal in)
14 Atm adjust input (signal in)
15 Supply Voltage (-)
Pin diagram of the Televac® CC-10 Wide Range Active Vacuum Gauge.
<STX>0R1<CR> Read units
<STX>0R2<CR> Read SP1L and SP1H
<STX>0R5<CR> Read analog output set parameter
<STX>0W1XXXX<CR> Set pressure unit
<STX>0W2XXXXXXXX<CR> Set SP1L and SP1H
<STX>0C1<CR> Crystal gauge atm adjustment
<STX>0S1<CR> Read pressure data
<STX>0S2<CR> Read error status

Assume address 0

Full list of commands is available in the instruction manual.

The CC-10 has three set points. All three are optically coupled solid state relays that are rated for 0.12 A at 50 V DC. Each set point has hysteresis characteristics and consists of two set values: upper threshold and lower threshold. LEDs on the front panel display the status of each set point. The high and low threshold values of each of the three set points can be set independently.

Molybdenum
Glass
Copper
Stainless Steel
Chromium
Solder
Fluorocarbon Elastomer
Quartz
Enclosure Material Metallized plastic
Electrical Connections D-Sub 15-pin male
Weight with Sensor 698 g (1.54 lbs) (NW25 Flange)
Weight without Sensor 355 g (0.78 lbs)
Dimensional drawing of the Televac® CC-10 Wide Range Active Vacuum Gauge.
CE certified to EN 61010-1, EN 61236-1
RoHS compliant
IP40
ISO 17025 accredited calibration optional
NIST traceable calibration optional

Download STEP File

Part Number Description STEP File
2-7980-031 CC-10 NW25/KF25 Stainless Steel Download
2-7980-032 CC-10 NW40/KF40 Stainless Steel Download
2-7980-052 CC-10 CF40/2.75″ CF-F Stainless Steel Download
