Televac® MX200 EthernetIP Vacuum Controller

  • Rack mountable with a highly configurable design
  • USB included in every unit for simple connection with a PC
  • High contrast OLED display with 180° viewing angle
  • Selectable units of measurement (Torr, mbar, Pascal)
  • Bootloader for field upgradeable firmware
  • Gas conversion functions included for nitrogen/air, argon, hydrogen, helium, neon, krypton, and carbon dioxide
  • Analog outputs (0 to 10 V DC) for every connected passive vacuum gauge
  • User-configurable analog output ranges
  • Excellent customer support
  • ISO 17025 accredited and NIST traceable calibrations optional
  • DHCP enable or disable with programmable IP address
  • Status LEDs for network/module status/port data activity
  • 10/100 Mbit, half or full duplex port operation
  • Secure web access for network and unit data and settings

The Televac® MX200 EthernetIP vacuum controller (also called a vacuum control unit or vacuum pressure controller) can be connected to up to 10 Televac® passive vacuum gauges including cold cathode gauges, convection gauges, diaphragm gauges, and thermocouple vacuum gauges. It also includes 0 to 10 V DC analog outputs for each vacuum gauge connected to the vacuum controller, EthernetIP/USB digital communications for simple integration with a PC or PLC, and up to 8 optional set point relays to act as a vacuum pressure controller for process control in your vacuum system.

The MX200 vacuum controller’s user interface includes six touch controls and a high contrast, 180° viewing angle OLED display, which shows measurements from up to 8 connected vacuum gauges simultaneously along with the selected units of measurement and the status of set point relays. This vacuum control unit supports multiple gas types including nitrogen/air, argon, hydrogen, helium, neon, krypton, and carbon dioxide. The MX200 vacuum controller is a modular unit, allowing you to choose a vacuum sensing solution specific to your needs.

Looking for active vacuum gauges instead of a controller? Check out our active gauges. Need a passive vacuum gauge to go with your MX200? Check out our passive vacuum gauges. Want to configure an MX200 and purchase online? Check out our MX200 Online Order Hub.

Product Description
Televac® MX200 EthernetIP Vacuum Controller
Televac® MX200 EthernetIP Vacuum Controller
PN: 2-7900-037
Instrument Part Number
MX200 Base Unit USB/EthernetIP 2-7900-037
MX200 Base Unit USB/RS-232/RS-485 2-7900-034
Module Part Number Slot (max)
Set Point Quad Relay 2-6200-411 1 (2)
1E Dual Piezo Diaphragm 2-6200-220 1 (5)
1F Dual Piezo Diaphragm 2-6200-244 1 (5)
2A Dual Thermocouple 2-6200-486 1 (5)
4A Dual Convection 2-6200-415 1 (5)
7B Penning Magnetron Cold Cathode 2-6200-227 2 (3)
7EF DI Magnetron Cold Cathode 2-6200-285 1 (5)
Capacitance Diaphragm (24 V DC) 2-6200-451 1 (5)
Capacitance Diaphragm (15 V DC) 2-6200-452 1 (5)
Operating Range 1*10-11 Torr to 10,000 Torr
Communications USB/EthernetIP
Analog Output 0 to 10 V DC (1 per sensor)
Analog Output Resolution 16 Bits
Programmable Set Points 4 per module (8 max)
Set Point Type Relay
Supply Voltage 115/230 V AC (2/1 A), 50-60Hz
Maximum Power 230 W
Calibration Medium Dry air or nitrogen
Operating Temperature 0 °C to 50 °C
Storage Temperature -20 °C to 70 °C
Display Readable Distance 5 m (16 ft)
Maximum Sensors Controlled 10
Maximum Sensors Displayed 8
Response Time ≤10 ms
P1 EthernetIP RJ45 port 1
P2 EthernetIP RJ45 port 2
NS USB communications
MS Module status LED
USB USB communications
Setup Lock Front panel lock switch
BTLD Bootload button

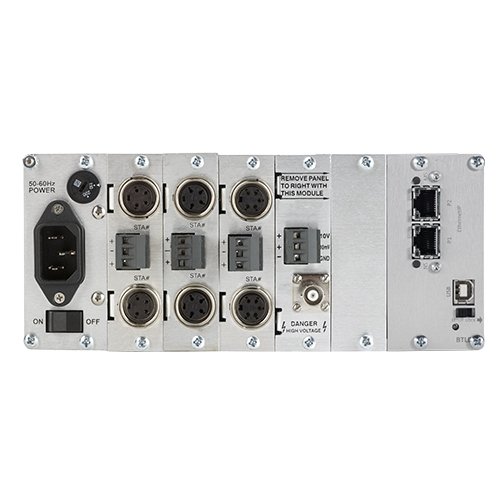

MX200 EthernetIP Vacuum Controller Electrical Connections (Pin Diagram)
Connectors (2) RJ45
Ports 10/100 Mbit, half/full duplex
DHCP Enable or disable

Class 1 Connections
Connection Type Point-to-point, multicast
Target to Originator Instance ID 100
Data Size 40
Originator to Target Instance ID 150
Data Size 4
Configuration Instance 3
Supported Connections 4
Requested Packet Interval 1 to 3200 ms
Trigger Types Cyclic, change of state
Priorities Low, high, schedule, urgent

Class 3 Connections
Service 0xE (get), 0x10 (set)
Class 0xA2
Instance See ADI table
Data Value Attribute 5
Supported Connections 6
Requested Packet Interval 100 to 10000 ms
Connection Type Application
Priority Low

The MX200 has up to eight relay set points. The relays are located on two optional relay modules with four set points each. Individual relay statuses are displayed on the front panel. The heavy-duty relays have an SPDT (1 Form C) contact form and are rated for 24 V DC. They have a maximum current rating of 8 A at 250 V AC or 5 A at 30 V DC.

Housing Aluminum
Electrical Connections Power cord (IEC 60320 C-13)
Weight (Base Unit) 2.2 kg (5 lbs)

MX200 Vacuum Controller Electrical Connections (Pin Diagram)

MX200 Vacuum Controller Electrical Connections (Pin Diagram)

MX200 Vacuum Controller Electrical Connections (Pin Diagram)

Certified to UL 61010-1
CE certified to EN61326-1:2006
Certified to CAN/CSA C22.2 No. 61010-1-12
EAC certified
ISO 17025 accredited calibration optional
NIST traceable calibration optional

Product Documentation

MX200 EthernetIP Datasheet
MX200 Instruction Manual
MX200 EthernetIP Instruction Manual Addendum
MX200 EthernetIP EDS File
Televac®️ Vacuum Calibration Tolerances

3D Model (STEP File)

MX200 Vacuum Controller STEP File

Application Notes

Televac®️ Application Note 3008: MX200 to PC Interfacing and Communications
Televac®️ Application Note 3011: MX200 and MM200 Analog Output Comparisons
Televac® Application Note 3015: Recommended Practices for Vacuum Calibration
Televac® Application Note 3016: MX200 EthernetIP Loading EDS Files for Rockwell Automation Allen-Bradley CompactLogix PLCs
Televac® Application Note 3017: MX200 EthernetIP Setup and Troubleshooting Guide for EthernetIP Option 1
Televac® Application Note 3017: MX200 EthernetIP Setup and Troubleshooting Guide for EthernetIP Option 2
Televac® Application Note 3029: Televac® EthernetIP Vacuum Controllers Creating and Mapping Class 3 Connections for Rockwell Automation Allen-Bradley CompactLogix PLCs

Videos

MX200 Demonstration Video

Tools

Televac® MX200 Online Order Hub
Televac® Vacuum Measurement Converter

Case Studies

Case Study: Argonne National Laboratory

Articles

Vacuum Measurement Using Modern Cold Cathode Technology

Brochures

Televac®️ Vacuum Measurement Product Catalog
MX200 Retrofit Your System
MX200 The Solution for High Energy Physics
MX200 The Solution for University Research
MX200 The Solution for Vacuum Furnaces
Full Range Solutions for Vacuum Furnaces
Comparison of Vacuum Controller Features: MX200 and MM200

Download STEP File

Part Number Description STEP File
2-7900-03X MX200 Vacuum Controller Download
