Tilt Product Selection Guide

Use this selection guide to locate the ideal tilt product for your needs. Simply select your performance requirements using the options on the left to filter through our wide selection of sensors, switches, boards and inclinometers. Click on any product image to read specs and access more product literature.

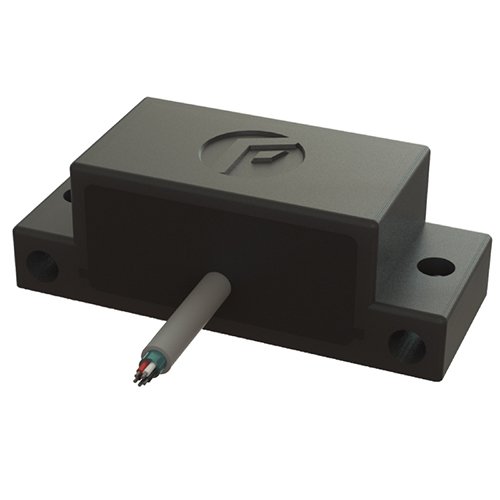

analog inclinometer sensor
ApexOne
Operating Range: ± 60°
Programmable Tilt Switch
0729-1763-XX
Operating Range: ± 1° to ± 45°
Interface: Relay & RS-232
electrolytic tilt switch
0729-1736-99
Operating Range: ± 1° to ± 45°
Interface: Relay & RS-232
Single-Axis Tilt Switch
0729-1757-99
Operating Range: ± 1° to ± 45°
Interface: Open Collector
Single-Axis Tilt Switch
0729-1758-99
Operating Range: ± 1° to ± 45°
Interface: Open Collector
Dual-Axis SPI Inclinometer
0729-1751-99
Operating Range: ± 60°
Interface: SPI
RS-232 Inclinometer
0729-1752-99
Operating Range: ± 60°
Interface: RS-232
Dual-Axis Analog Inclinometer
0729-1753-99
Operating Range: ± 60°
Interface: Analog and PWM
RS-485 inclinometer
0729-1754-99
Operating Range: ± 60°
Interface: RS-485
analog inclinometer
0729-1755-99
Operating Range: ± 60°
Interface: Analog

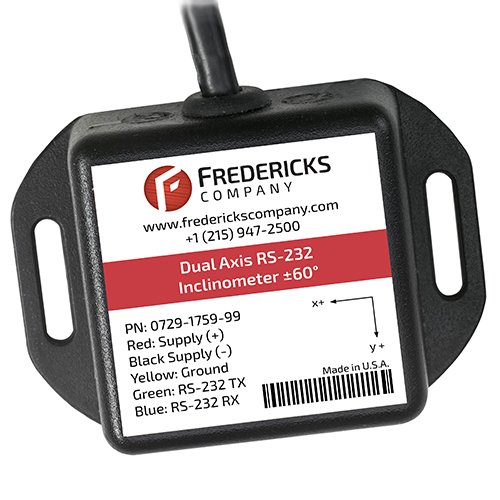

RS-232 Inclinometer
0729-1759-99
Operating Range: ± 60°
Interface: RS-232
RS-485 Inclinometer
0729-1760-99
Operating Range: ± 60°
Interface: RS-485
Dual Axis RS-485 Inclinometer
0729-1760-04
Operating Range: ± 10°
Interface: RS-485
MEMS tilt sensor digital inclinometer sensor, 0750-9002-99, 0751-9002-99, 0750-3002-99, 0751-3002-99 Fredericks, 215 947 2500
0751-3002-99 (±30°)
Operating Range: ± 30°
Interface: Analog and PWM
MEMS tilt sensor digital inclinometer sensor, 0750-9002-99, 0751-9002-99, 0750-3002-99, 0751-3002-99 Fredericks, 215 947 2500
0751-9002-99 (±90°)
Operating Range: ± 90°
Interface: Analog and PWM
MEMS tilt sensor digital inclinometer sensor, 0750-9002-99, 0751-9002-99, 0750-3002-99, 0751-3002-99 Fredericks, 215 947 2500
0750-3002-99 (±30°)
Operating Range: ± 30°
Interface: RS-485
MEMS tilt sensor digital inclinometer sensor, 0750-9002-99, 0751-9002-99, 0750-3002-99, 0751-3002-99 Fredericks, 215 947 2500
0750-9002-99 (±30°)
Operating Range: ± 90°
Interface: RS-485
electrolytic tilt sensor circuit electronic tilt sensor, 1-6200-005, Fredericks, +1 215 947 2500
1-6200-005
Interface: SPI
electrolytic tilt sensor circuit electronic tilt sensor, 1-6200-006, Fredericks, +1 215 947 2500
1-6200-006
Interface: RS-232
electrolytic tilt sensor circuit electronic tilt sensor, 1-6200-007, Fredericks, +1 215 947 2500
1-6200-007
Interface: Analog and PWM
electrolytic tilt sensor circuit electronic tilt sensor, 1-6200-008, Fredericks, +1 215 947 2500
1-6200-008
Interface: RS-485
electrolytic tilt sensor circuit electrolytic tilt sensor electronic tilt sensor, 1-6200-012, Fredericks, +1 215 947 2500
1-6200-012
Interface: RS-232
Wide-Range Electrolytic Tilt Sensor
0728-1025-99
Operating Range: ± 85°
Repeatability: ±0.05°
electrolytic tilt sensor
0711-0763-99 (±1°)
Operating Range: ± 1°
Repeatability: ±0.00083°
electrolytic tilt sensor

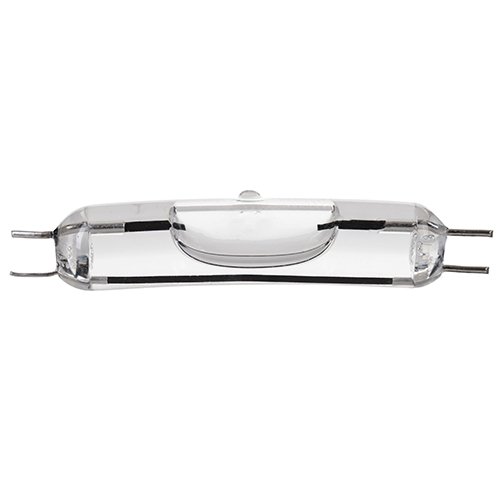

0711-0768-99 (±3°)
Operating Range: ± 3°
Repeatability: ±0.00083°
fredericks electrolytic tilt sensor
0737-0604-99
Operating Range: ± 0.5°
Repeatability: ±0.00014°
electrolytic tilt sensor
0737-1203-99 (±0.5°)
Operating Range: ± 0.5°
Repeatability: ±0.00014°
electrolytic tilt sensor

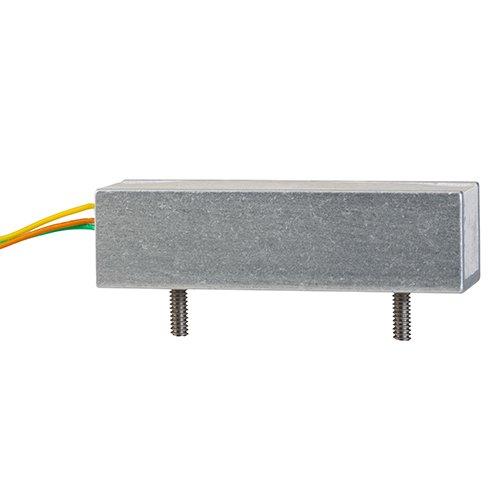

Encapsulated 0719-1138-99 (±1°)
Operating Range: ± 1°
Repeatability: ±0.00083°
electrolytic tilt sensor
Encapsulated 0719-1143-99 (±3°)
Operating Range: ± 3°
Repeatability: ±0.00083°
electrolytic tilt sensor
Encapsulated 0719-3701-99
Operating Range: ± 0.5°
Repeatability: ±0.00014°
electrolytic tilt sensor
Encapsulated 0719-3703-99 9 (±0.5°)
Operating Range: ± 0.5°
Repeatability: ±0.00014°
electrolytic tilt sensor

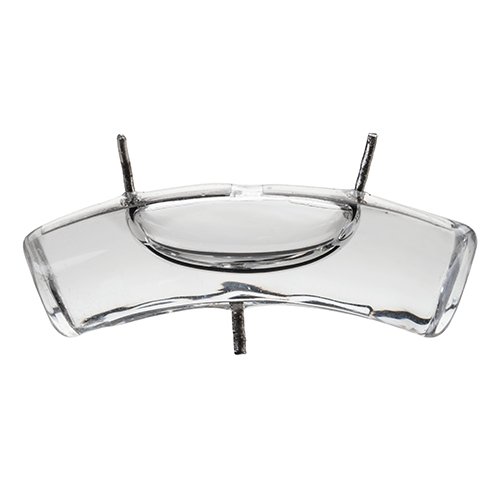

0737-0101-99
Operating Range: ± 10°
Repeatability: ±0.00056°
electrolytic tilt sensor
Encapsulated 0719-3705-99
Operating Range: ± 10°
Repeatability: ±0.00056°
fredericks electrolytic tilt sensor
0716-2201-99 (±70°)
Operating Range: ± 70°
Repeatability: ±0.0033°
glass electrolytic tilt sensor
0716-5201-99 (±70°)
Operating Range: ± 70°
Repeatability: ±0.0033°
electrolytic tilt sensor
0717-2201-99 (±70°)
Operating Range: ± 70°
Repeatability: ±0.0033°
electrolytic tilt sensor
0717-5201-99 (±70°)
Operating Range: ± 70°
Repeatability: ±0.0033°
fredericks electrolytic tilt sensor
0703-0703-99
Operating Range: ± 2°
Repeatability: ±0.0014°
electrolytic tilt sensor circuit electronic tilt sensor, 0703-0711-99, The Fredericks Company, +1 215 947 2500
0703-0711-99 (±3°)
Operating Range: ± 3°
Repeatability: ±0.0014°
electrolytic tilt sensor circuit electronic tilt sensor, 0703-1602-99, The Fredericks Company, +1 215 947 2500

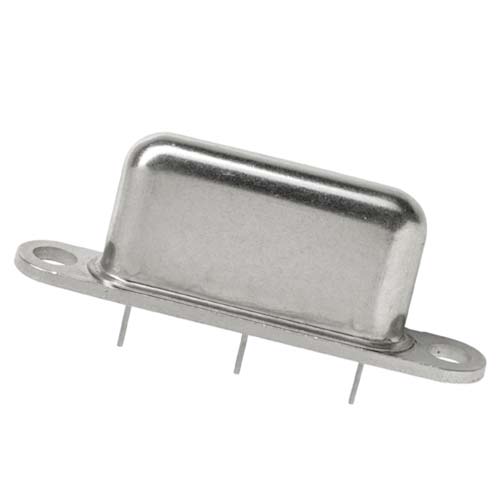

0703-1602-99 (±25°)
Operating Range: ± 25°
Repeatability: ±0.005°
electrolytic tilt sensor circuit electronic tilt sensor, 0717-4304-99, The Fredericks Company, +1 215 947 2500
0717-4304-99
Operating Range: ± 60°
Repeatability: ±0.1°
electrolytic tilt sensor circuit electronic tilt sensor, 0717-4313-99, 0717-4315-99, The Fredericks Company, +1 215 947 2500
0717-4313-99 (±50°)
Operating Range: ± 50°
Repeatability: ±0.05°
electrolytic tilt sensor circuit electronic tilt sensor, 0717-4313-99, 0717-4315-99, The Fredericks Company, +1 215 947 2500
0717-4315-99 (±60°)
Operating Range: ± 60°
Repeatability: ±0.05°
electrolytic tilt sensor circuit electronic tilt sensor, 0717-4318-99, 0717-4319-99, The Fredericks Company, +1 215 947 2500
0717-4318-99 (±60°)
Operating Range: ± 60°
Repeatability: ±0.1°
electrolytic tilt sensor circuit electronic tilt sensor, 0717-4318-99, 0717-4319-99, The Fredericks Company, +1 215 947 2500
0717-4319-99 (±50°)
Operating Range: ± 50°
Repeatability: ±0.1°
electrolytic tilt sensor circuit electronic tilt sensor, 0703-1602-99, The Fredericks Company, +1 215 947 2500
0717-4321-99 (±40°)
Operating Range: ± 40°
Repeatability: ±0.1°
electrolytic tilt sensor circuit electronic tilt sensor, 0703-1602-99, The Fredericks Company, +1 215 947 2500
0717-4322-99 (±45°)
Operating Range: ± 45°
Repeatability: ±0.1°
electrolytic tilt sensor circuit electronic tilt sensor, 0703-1602-99, The Fredericks Company, +1 215 947 2500

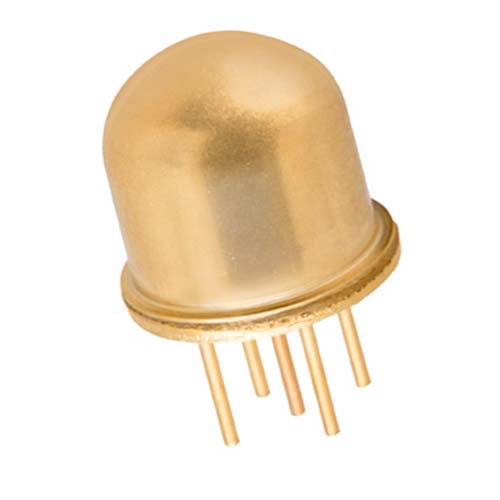

0717-4323-99 (±50°)
Operating Range: ± 50°
Repeatability: ±0.1°
