Part Number: 2-7900-034
Compatible With: 1E Piezo Diaphragm, 1F Piezo Diaphragm, 2A Thermocouple, 2A VacuMini, 2A NASA Mini, 4A Convection, 7B Cold Cathode, 7E Cold Cathode, 7F Cold Cathode, 7FC Cold Cathode, 7FCS Cold Cathode, CDG, Set Point Relays
Features and Benefits:
- 1*10-11 to 10,000 Torr maximum pressure measurement range
- Highly configurable, rack mountable design
- RS-232, RS-485, USB communications (need EthernetIP or PROFINET?)
- Up to 10 configurable analog outputs (0 to 10 V DC) and up to 8 set point relay outputs
- High contrast OLED display with 180° viewing angle
- Selectable units of measurement (Torr, mbar, Pascal)
- Supports nitrogen/air, argon, hydrogen, helium, neon, krypton, carbon dioxide gases
- ISO 17025 accredited and NIST traceable calibrations available
The Televac® MX200 vacuum controller (also called a vacuum control unit or vacuum pressure controller) can be connected to up to 10 Televac® passive vacuum gauges including cold cathode gauges, convection gauges, piezo and capacitance diaphragm gauges, and thermocouple vacuum gauges. This gives it a maximum pressure measurement range of 1*10-11 to 10,000 Torr.
It also includes 0 to 10 V DC analog outputs for each vacuum gauge connected to the vacuum controller, RS-232/RS-485/USB digital communications for simple integration with a PC or PLC, and up to 8 optional set point relays for process control in your vacuum system.
The MX200 vacuum controller’s user interface includes six touch controls and a high contrast OLED display with a 180° viewing angle, which shows measurements from up to 8 connected vacuum gauges simultaneously along with the selected units of measurement and the status of set point relays. It also includes auto-scaling of the text size based on the number of measurements displayed.
This vacuum control unit supports multiple gas types including nitrogen/air, argon, hydrogen, helium, neon, krypton, and carbon dioxide. The MX200 vacuum controller is a configurable and modular unit, allowing you to choose a vacuum sensing solution specific to your needs.
Looking for active vacuum gauges instead of a controller? Check out our active gauges. Need a passive vacuum gauge to go with your MX200? Check out our passive vacuum gauges. Want to configure an MX200 and purchase online? Check out our MX200 Online Order Hub.
PN: 2-7900-034
| Instrument | Part Number | |
| MX200 Base Unit RS-232/RS-485/USB | 2-7900-034 | |
| MX200 Base Unit EthernetIP/USB | 2-7900-037 | |
| MX200 Base Unit PROFINET/USB | 2-7900-038 | |
| Module | Part Number | Slot (max) |
| Set Point Quad Relay | 2-6200-411 | 1 (2) |
| 1E Dual Piezo Diaphragm | 2-6200-220 | 1 (5) |
| 1F Dual Piezo Diaphragm | 2-6200-244 | 1 (5) |
| 2A Dual Thermocouple | 2-6200-486 | 1 (5) |
| 4A Dual Convection | 2-6200-415 | 1 (5) |
| 7B Penning Magnetron Cold Cathode | 2-6200-227 | 2 (3) |
| 7EF DI Magnetron Cold Cathode | 2-6200-285 | 1 (5) |
| Capacitance Diaphragm (24 V DC) | 2-6200-451 | 1 (5) |
| Capacitanc Diaphragm (15 V DC) | 2-6200-452 | 1 (5) |
| Operating Range | 1*10-11 Torr to 10,000 Torr |
| Communications | USB/RS-232/RS-485 |
| Analog Output | 0 to 10 V DC (1 per sensor) |
| Analog Output Resolution | 16 Bits |
| Programmable Set Points | 4 per module (8 max) |
| Set Point Type | Relay |
| Supply Voltage | 115/230 V AC (2/1 A), 50-60Hz |
| Maximum Power | 230 W |
| Calibration Medium | Dry air or nitrogen |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Display Readable Distance | 5 m (16 ft) |
| Maximum Sensors Controlled | 10 |
| Maximum Sensors Displayed | 8 |
| Response Time | ≤10 ms |

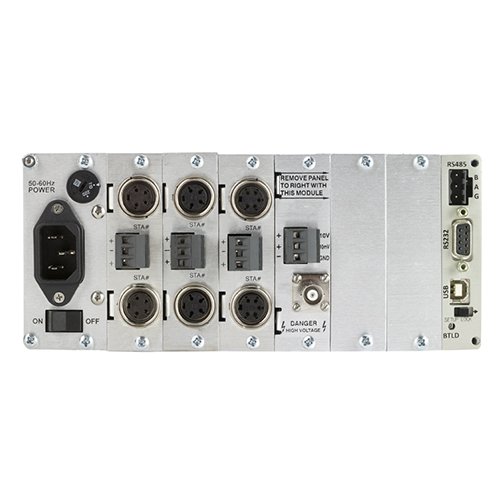

| RS-232 D-Sub 9 Pin | Description |
| D-Sub Pin 1 | Ground |
| D-Sub Pin 2 | RS-232 TX |
| D-Sub Pin 3 | RS-232 RX |
| D-Sub Pin 4 | No Connection |
| D-Sub Pin 5 | Ground |
| D-Sub Pin 6 | No Connection |
| D-Sub Pin 7 | Ground |
| D-Sub Pin 8 | No Connection |
| D-Sub Pin 9 | Ground |
| RS-485 3 Pin | Description |
| 3-Pin Pin 1 | RS-485 B (+) |
| 3-Pin Pin 2 | RS-485 A (-) |
| 3-Pin Pine 3 | Ground |
| Other | Description |
| USB | USB communications |
| Setup lock | Front panel lock switch |
| BTLD | Bootload button |
The MX200 has up to eight relay set points. The relays are located on two optional relay modules with four set points each. Individual relay statuses are displayed on the front panel. The heavy-duty relays have an SPDT (1 Form C) contact form and are rated for 24 V DC. They have a maximum current rating of 8 A at 250 V AC or 5 A at 30 V DC.

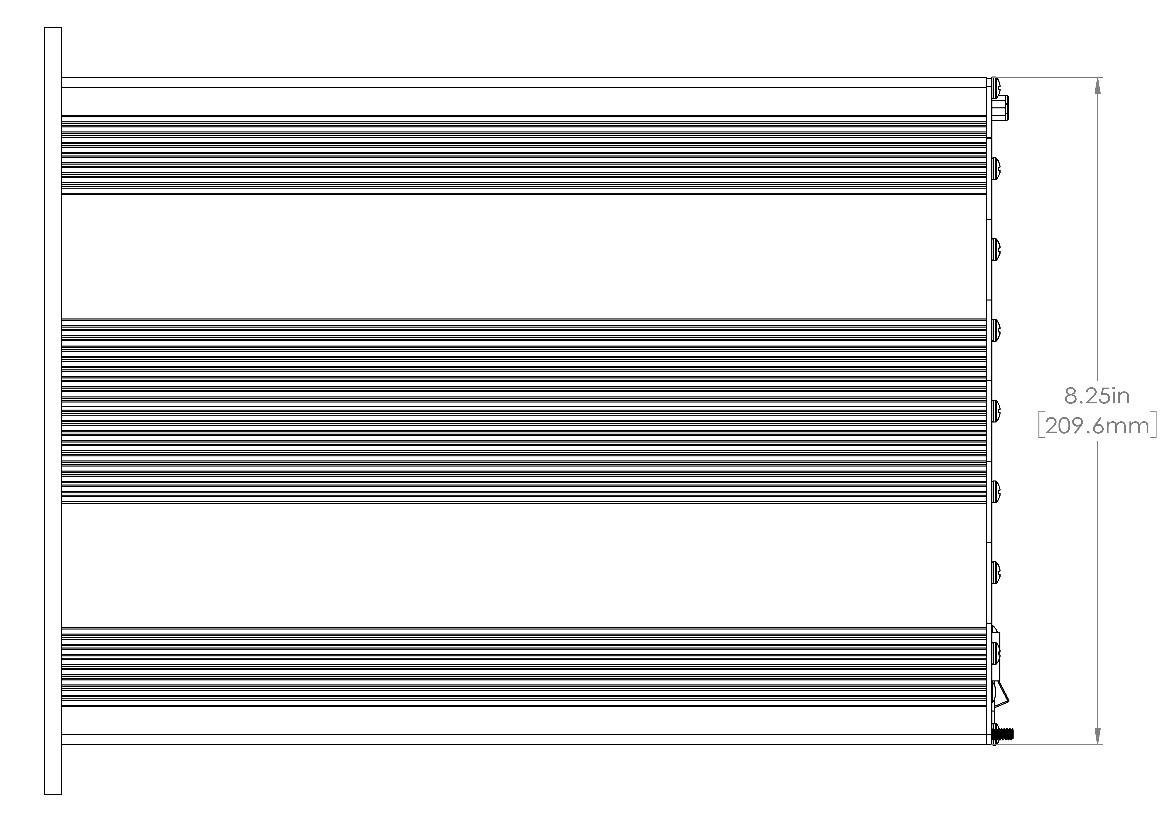

| Housing | Aluminum |
| Electrical Connections | Power cord (IEC 60320 C-13) |
| Weight (Base Unit) | 2.2 kg (5 lbs) |
| Certified to UL 61010-1 |
| CE certified to EN61326-1:2006 |
| Certified to CAN/CSA C22.2 No. 61010-1-12 |
| NRTL certified |
| EAC certified |
| PROFINET certified |
| RoHS compliant |
| REACH compliant |
| ISO 17025 accredited calibration optional |
| NIST traceable calibration optional |
