0717-4318-99 ±60° TrueTILT™ Dual-Axis Electrolytic Tilt Sensor

0717-4318-99 ±60° TrueTILT™ Electrolytic Tilt Sensor

This electrolytic tilt sensor (also sometimes called an electronic tilt sensor) gives wide-range measurement up to ±60° with high accuracy of ±0.1° in two axes (dual-axis measurement). It has an industrial-grade, all-metal, and hermetically sealed sensor design for use in the most extreme environments. This sensor is slightly lower accuracy and lower cost than the similar 0717-4315-99 sensor, and it’s the lowest cost option (as well as the 0717-4319-99) of our other TrueTILT™ and glass electrolytic sensors.

All electrolytic sensors require an electrolytic tilt sensor circuit (also commonly referred to as signal conditioning or a signal conditioner) to provide a tilt angle output. This can be built into your system or you can purchase an electrolytic tilt sensor circuit we’ve designed. Our circuits are optimized for the best performance from our electronic tilt sensors.

To learn more about the principles of electrolytic sensors and how to integrate our sensors into your application, see our Technical Information page. Confused about terminology? The following terms are often used interchangeably, though they have slightly different meanings; tilt sensor, electrolytic tilt sensor, electronic tilt sensor.

TrueTILT™ Wide-Range SensorPart NumberPriceBuy
TrueTILT™ Dual-Axis Wide-Range Electrolytic Tilt Sensor0717-4318-99$13.10
Operating Range ±60°
Linear Range ±25°
Number of Axes 2
Repeatability ±0.1°
Resolution ≤0.003°
Null Offset ±5°
Operating Temperature -40 °C to 85 °C
Storage Temperature -55 °C to 125 °C
Time Constant ≤100 ms

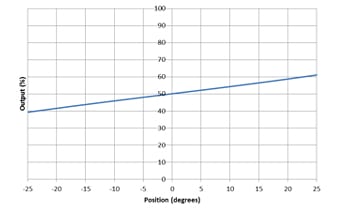

Linear Range Output

electrolyic tilt sensor output graph, The Fredericks Company, +1 215 947 2500

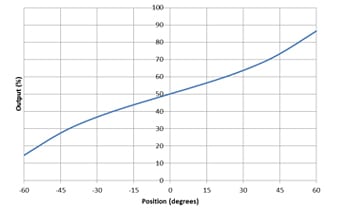

Operating Range Output

electrolyic tilt sensor output graph, The Fredericks Company, +1 215 947 2500

6200 series signal conditioners – These signal conditioners can be configured with the 0717-4318-99 or any other Fredericks Company tilt sensor. They have a variety of outputs, including RS-232, RS485, SPI and analog. The sensor and board are provided separately or as an assembly with the sensor already installed at the customer’s request.

TrueTILT™ series sensors – The 0717-4318-99 is part of this series, which includes narrow, mid and wide range metal sensors that have different operating specifications to fit the customer’s needs.
