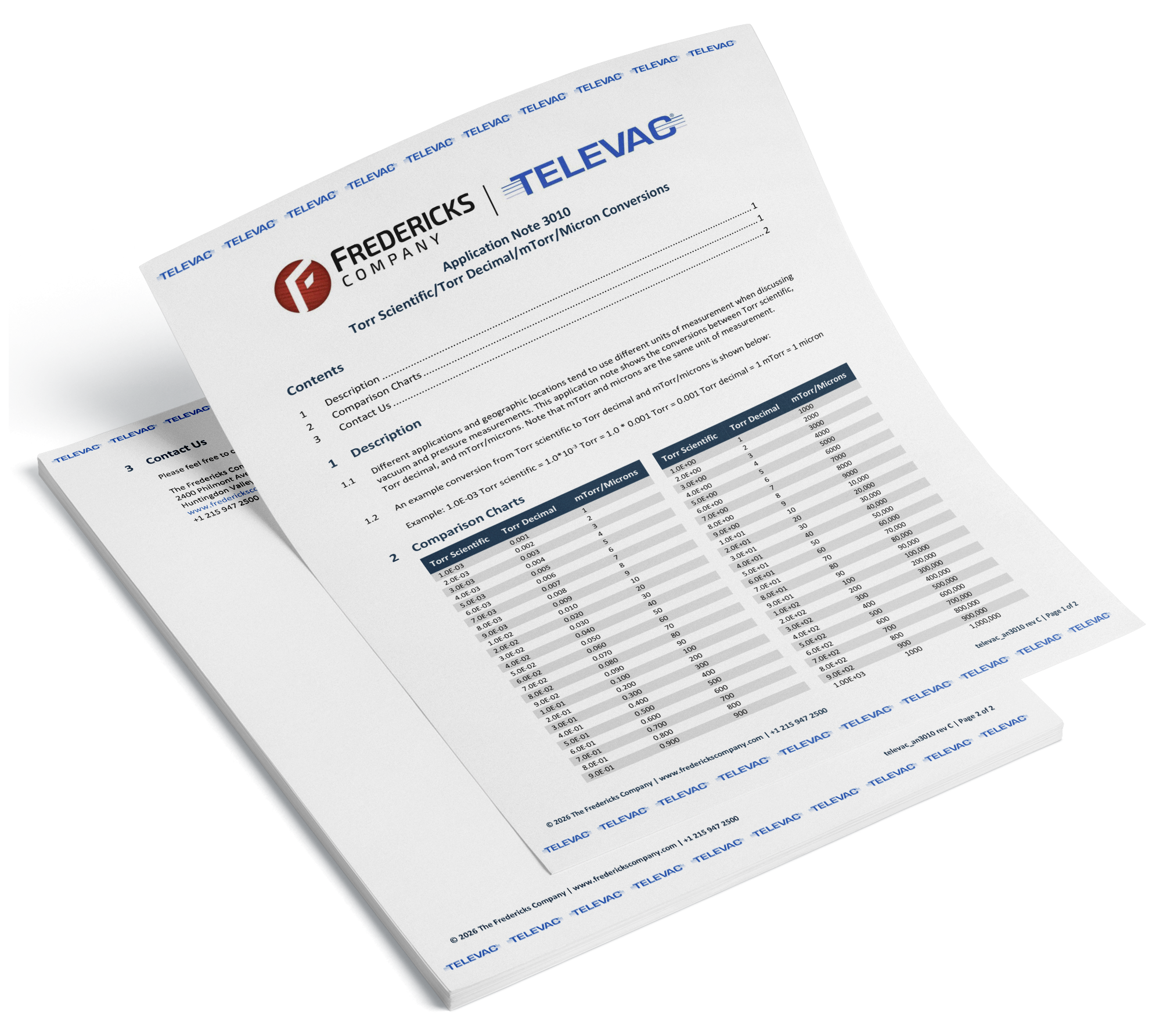

Televac AN 3010: Torr Scientific/Torr Decimal/mTorr/Micron Conversions

Description

Different applications and geographic locations tend to use different units of measurement when discussing vacuum and pressure measurements. This application note shows the conversions between Torr scientific, Torr decimal, and mTorr/microns.

Note that mTorr and microns are the same unit of measurement. An example conversion from Torr scientific to Torr decimal and mTorr/microns is shown below:

Example: 1.0E-03 Torr scientific = 1.0*10-3 Torr = 1.0 * 0.001 Torr = 0.001 Torr decimal = 1 mTorr = 1 micron

Comparison Charts

   Torr Scientific Torr Decimal mTorr/Microns
   1.0E-03 0.001 1
   2.0E-03 0.002 2
   3.0E-03 0.003 3
   4.0E-03 0.004 4
   5.0E-03 0.005 5
   6.0E-03 0.006 6
   7.0E-03 0.007 7
   8.0E-03 0.008 8
   9.0E-03 0.009 9
   1.0E-02 0.010 10
   2.0E-02 0.020 20
   3.0E-02 0.030 30
   4.0E-02 0.040 40
   5.0E-02 0.050 50
   6.0E-02 0.060 60
   7.0E-02 0.070 70
   8.0E-02 0.080 80
   9.0E-02 0.090 90
   1.0E-01 0.100 100
   2.0E-01 0.200 200
   3.0E-01 0.300 300
   4.0E-01 0.400 400
   5.0E-01 0.500 500
   6.0E-01 0.600 600
   7.0E-01 0.700 700
   8.0E-01 0.800 800
   9.0E-01 0.900 900



   Torr Scientific Torr Decimal mTorr/Microns
   1.0E+00 1 1000
   2.0E+00 2 2000
   3.0E+00 3 3000
   4.0E+00 4 4000
   5.0E+00 5 5000
   6.0E+00 6 6000
   7.0E+00 7 7000
   8.0E+00 8 8000
   9.0E+00 9 9000
   1.0E+01 10 10,000
   2.0E+01 20 20,000
   3.0E+01 30 30,000
   4.0E+01 40 40,000
   5.0E+01 50 50,000
   6.0E+01 60 60,000
   7.0E+01 70 70,000
   8.0E+01 80 80,000
   9.0E+01 90 90,000
   1.0E+02 100 100,000
   2.0E+02 200 200,000
   3.0E+02 300 300,000
   4.0E+02 400 400,000
   5.0E+02 500 500,000
   6.0E+02 600 600,000
   7.0E+02 700 700,000
   8.0E+02 800 800,000
   9.0E+02 900 900,000
   1.00E+03 1000 1,000,000
