Teilenummer: 2-7900-034
Compatible With: 1E Piezo Diaphragm, 1F Piezo Diaphragm, 2A Thermocouple, 2A VacuMini, 2A NASA Mini, 4A Convection, 7B Cold Cathode, 7E Cold Cathode, 7F Cold Cathode, 7FC Cold Cathode, 7FCS Cold Cathode, CDG, Set Point Relays
Merkmale und Vorteile:
- 1*10-11 bis 10.000 Torr maximaler Druckmessbereich
- Hochgradig konfigurierbare, rackmontierbare Konstruktion
- RS-232, RS-485, USB-Kommunikation (benötigen Sie EthernetIP?)
- Bis zu 10 konfigurierbare Analogausgänge (0 bis 10 V DC) und bis zu 8 Sollwert-Relaisausgänge
- Kontrastreiches OLED-Display mit 180° Betrachtungswinkel
- Wählbare Maßeinheiten (Torr, mbar, Pascal)
- Unterstützt die Gase Stickstoff/Luft, Argon, Wasserstoff, Helium, Neon, Krypton und Kohlendioxid
- ISO 17025 accredited and NIST-traceable calibrations available
Der Televac® MX200 Vakuum-Controller (auch als Vakuum-Steuergerät oder Vakuum-Druckregler) kann an bis zu 10 passive Televac® Vakuummessgeräte angeschlossen werden, darunter Kaltkathodenmessgeräte, Konvektionsmessgeräte, Piezo- und Kapazitätsmembranmessgeräte sowie Thermoelement-Vakuummessgeräte. Dies ermöglicht einen maximalen Druckmessbereich von 1*10-11 bis 10.000 Torr.
Darüber hinaus verfügt es über analoge Ausgänge von 0 bis 10 V DC für jedes an den Vakuum-Controller angeschlossene Vakuummessgerät, digitale RS-232/RS-485/USB-Kommunikation für die einfache Integration mit einem PC oder einer SPS und bis zu 8 optionale Sollwertrelais für die Prozesssteuerung in Ihrem Vakuumsystem.
Die Benutzeroberfläche des MX200-Vakuumcontrollers umfasst sechs Touch-Bedienelemente und ein kontrastreiches OLED-Display mit einem Betrachtungswinkel von 180°, auf dem die Messwerte von bis zu acht angeschlossenen Vakuummessgeräten gleichzeitig zusammen mit den ausgewählten Maßeinheiten und dem Status der Sollwertrelais angezeigt werden. Außerdem wird die Textgröße je nach Anzahl der angezeigten Messungen automatisch skaliert.
Dieses Vakuumsteuergerät unterstützt mehrere Gasarten, darunter Stickstoff/Luft, Argon, Wasserstoff, Helium, Neon, Krypton und Kohlendioxid. Der MX200-Vakuum-Controller ist eine konfigurierbare und modulare Einheit, die es Ihnen ermöglicht, eine auf Ihre Bedürfnisse zugeschnittene Lösung für die Vakuumerfassung zu wählen.
Looking for active vacuum gauges instead of a controller? Check out our active gauges. Need a passive vacuum gauge to go with your MX200? Check out our passive vacuum gauges. Want to configure an MX200 and purchase online? Check out our MX200 Online Order Hub.
Gerät | Teilenummer | |
MX200 Basiseinheit USB/RS-232/RS-485 | 2-7900-034 | |
MX200 Basiseinheit USB/EthernetIP | 2-7900-037 | |
Modul | Teilenummer | Steckplatz (max) |
Sollwert Vierfachrelais | 2-6200-411 | 1 (2) |
1E Piezo-Doppelmembran | 2-6200-220 | 1 (5) |
1F Piezo-Doppelmembran | 2-6200-244 | 1 (5) |
2A Dual Thermoelement | 2-6200-486 | 1 (5) |
4A Doppelkonvektion | 2-6200-415 | 1 (5) |
7B Penning Magnetron Kaltkathode | 2-6200-227 | 2 (3) |
7EF DI Magnetron Kaltkathode | 2-6200-285 | 1 (5) |
Capacitance Diaphragm (24 V DC) | 2-6200-451 | 1 (5) |
Capacitance Diaphragm (15 V DC) | 2-6200-452 | 1 (5) |
Betriebsbereich | 1*10-11 Torr to 10,000 Torr |
Kommunikation | USB/RS-232/RS-485 |
Analoger Ausgang | 0 bis 10 V DC (1 pro Sensor) |
Auflösung des Analogausgangs | 16 Bits |
Programmierbare Sollwerte | 4 pro Modul (max. 8) |
Sollwert-Typ | Relais |
Versorgungsspannung | 115/230 V AC (2/1 A), 50-60Hz |
Maximale Leistung | 230 W |
Kalibriermedium | Trockene Luft oder Stickstoff |
Betriebstemperatur | 0 °C bis 50 °C |
Lagertemperatur | -20 °C bis 70 °C |
Anzeige Lesbarer Abstand | 5 m (16 ft) |
Maximal angesteuerte Sensoren | 10 |
Maximal angezeigte Sensoren | 8 |
Reaktionszeit | ≤10 ms |

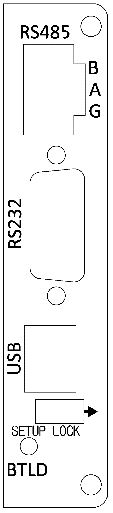

RS-232 D-Sub 9 Pin | Beschreibung |
D-Sub Pin 1 | Ground |
D-Sub Pin 2 | RS-232 TX |
D-Sub Pin 3 | RS-232 RX |
D-Sub Pin 4 | No Connection |
D-Sub Pin 5 | Ground |
D-Sub Pin 6 | No Connection |
D-Sub Pin 7 | Ground |
D-Sub Pin 8 | No Connection |
D-Sub Pin 9 | Ground |
RS-485 3 Pin | Beschreibung |
3-Pin Pin 1 | RS-485 B (+) |
3-Pin Pin 2 | RS-485 A (-) |
3-Pin Pine 3 | Ground |
Andere | Beschreibung |
USB | USB communications |
Setup lock | Front panel lock switch |
BTLD | Bootload button |

The MX200 has up to eight relay set points. The relays are located on two optional relay modules with four set points each. Individual relay statuses are displayed on the front panel. The heavy-duty relays have an SPDT (1 Form C) contact form and are rated for 24 V DC. They have a maximum current rating of 8 A at 250 V AC or 5 A at 30 V DC.
Gehäuse | Aluminium |
Elektrische Anschlüsse | Power cord (IEC 60320 C-13) |
Weight (Base Unit) | 2.2 kg (5 lbs) |
Certified to UL 61010-1 |
CE certified to EN61326-1:2006 |
Certified to CAN/CSA C22.2 No. 61010-1-12 |
EAC certified |
ISO 17025 accredited calibration optional |
NIST-traceable calibration optional |
Produkt-Dokumentation
MX200-Datenblatt |
MX200 Gebrauchsanweisung |
Televac®️ Vacuum Calibration Tolerances |
3D Model (STEP File)
MX200 Vacuum Controller STEP File |
Anwendungshinweise
Televac®️ Application Note 3008: MX200 to PC Interfacing and Communications |
Televac®️ Application Note 3011: MX200 and MM200 Analog Output Comparisons |
Videos
MX200-Demonstrationsvideo |
Werkzeuge
Televac® MX200 Online Order Hub |
Televac® Vakuum-Messumformer |
Case Studies
Fallstudie: Argonne National Laboratory |
Artikel
Vacuum Measurement Using Modern Cold Cathode Technology |
Brochures
Download STEP File
Teilenummer | Beschreibung | STEP File |
2-7900-03X | MX200 Vakuum-Controller | Download |
