MX200 Features
- 1*10-11到10,000 Torr的最大压力测量范围
- 高度可配置，可安装在机架上的设计
- RS-232, RS-485, EthernetIP, PROFINET, and USB communications options available
- Up to 10 configurable analog outputs (0 to 10 V DC)
- Up to 8 set point relay outputs
- 高对比度的OLED显示屏，180°可视角度。
- 可选择的测量单位（托尔、毫巴、帕斯卡）。
- 支持氮气/空气、氩气、氢气、氦气、氖气、氪气、二氧化碳气体
- ISO 17025 accredited and NIST traceable calibrations available
EthernetIP Features
- 10/100 Mbit、半双工或全双工端口操作
- DHCP启用或禁用，可设置IP地址。
- 网络/模块状态/端口数据活动的状态 LED
- 安全的网络访问，以获取网络和设备的数据和设置。
PROFINET Features
- 100 Mbit, full duplex port operation
- 网络/模块状态/端口数据活动的状态 LED
- RJ45 (2) ports for simple integration for new and existing designs
| 工作范围 | 1*10-11托至 10,000 托 |
| 沟通 | RS-232/RS-485/USB, EthernetIP/USB, or PROFINET/USB |
| 模拟输出 | 0至10 V DC（每个传感器1个）。 |
| 模拟输出分辨率 | 16位 |
| 可编程设置点 | 每个模块4个（最多8个） |
| 设定点类型 | 中继 |
| 电源电压 | 交流 115/230 伏（2/1 A），50-60 赫兹 |
| 最大功率 | 230 W |
| 校准介质 | 干燥空气或氮气 |
| 操作温度 | 0℃至50℃ |
| 储存温度 | -20℃至70℃ |
| 显示可读距离 | 5米（16英尺） |
| 最大控制的传感器 | 10 |
| 显示的最大传感器 | 8 |
| 响应时间 | ≤10 毫秒 |
| RS-232 D-Sub 9 Pin | 说明 |
| D-Sub Pin 1 | 地面 |
| D-Sub Pin 2 | RS-232 TX |
| D-Sub Pin 3 | RS-232 RX |
| D-Sub Pin 4 | 无连接 |
| D-Sub Pin 5 | 地面 |
| D-Sub Pin 6 | 无连接 |
| D-Sub Pin 7 | 地面 |
| D-Sub Pin 8 | 无连接 |
| D-Sub Pin 9 | 地面 |
| RS-485 3 Pin | 说明 |
| 3-Pin Pin 1 | RS-485 B (+) |
| 3-Pin Pin 2 | RS-485 A (-) |
| 3-Pin Pine 3 | 地面 |
| 其他 | 说明 |
| USB | USB 通信 |
| Setup lock | 前面板锁定开关 |
| BTLD | 启动按钮 |

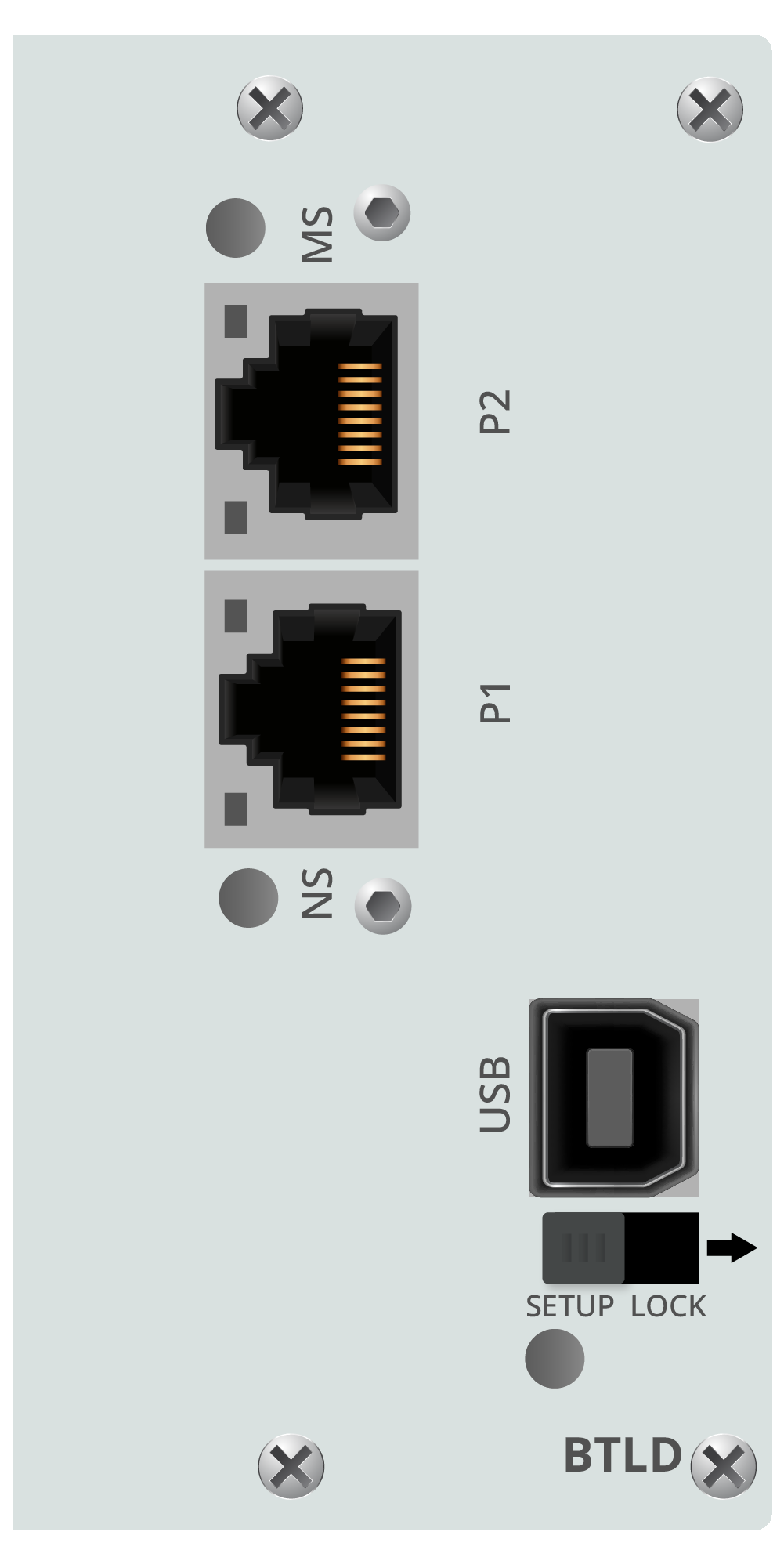

| PROFINET/EthernetIP/USB | 说明 |
| P1 | Industrial Ethernet RJ45 port 1 |
| P2 | Industrial Ethernet RJ45 port 2 |
| NS | Network status LED |
| MS | 模块状态 LED |
| USB | USB 通信 |
| 设置锁定 | 前面板锁定开关 |
| BTLD | 启动按钮 |
The MX200 has up to eight relay set points. The relays are located on two optional relay modules with four set points each. Individual relay statuses are displayed on the front panel.The heavy-duty relays have an SPDT (1 Form C) contact form and are rated for 24 V DC. They have a maximum currentrating of 8 A at 250 V AC or 5 A at 30 V DC.
| 住房 | 铝合金 |
| 电气连接 | 电源线（IEC 60320 C-13） |
| 重量（基本单位） | 2.2 千克（5 磅） |
| 仪器 | 部件号 | Slots Available |
| MX200 Base Unit RS-232/RS-485/USB | 2-7900-034 | 6 |
| MX200 Base Unit EthernetIP/USB | 2-7900-037 | 5 |
| MX200 Base Unit PROFINET/USB | 2-7900-038 | 5 |
| 模块 | 部件号 | 槽位(最大) |
| Set Point Quad Relay Module | 2-6200-411 | 1 (2) |
| 1E 双压电隔膜模块 | 2-6200-220 | 1 (5) |
| 1F 双压电隔膜模块 | 2-6200-244 | 1 (5) |
| 2A双热电偶模块 | 2-6200-486 | 1 (5) |
| 4A双对流模块 | 2-6200-415 | 1 (5) |
| 7B 潘宁磁控冷阴极模块 | 2-6200-227 | 2 (3) |
| 7EF DI Magnetron Cold Cathode Module | 2-6200-285 | 1 (5) |
| Capacitance Diaphragm (24 V DC) Module | 2-6200-451 | 1 (5) |
| Capacitance Diaphragm (15 V DC) Module | 2-6200-452 | 1 (5) |
MX200真空控制器 |
MX200以太网IP真空控制器 |
 |
 |
MX200 PROFINET Vacuum Controller |
|
 |
| Compatible Vacuum Gauges | 零件编号 |
| 2A 热电偶真空计 | 2-2100-10, 2-2100-XX, 2-2126-0XX |
| 2A VacuMini 热电偶真空计 | 2-2100-XXX |
| 2A NASA Mini Thermocouple Vacuum Gauge | 2-2100-XX |
| 4A对流真空计 | 2-6200-415 |
| 1E压电隔膜真空计 | 2-2108-001 |
| 7B潘宁磁控冷阴极真空计 | 2-2100-2XX |
| 7E双反磁控冷阴极真空计 | 2-2142-0XX |
| 7F Double Inverted Magnetron Cold Cathode Vacuum Gauge | 2-2144-052 |
| 7FC Double Inverted Magnetron Cleanable Cold Cathode Vacuum Gauge | 2-2146-052 |
| 7FCS Quick Start Double Inverted Magnetron Cleanable Cold Cathode Vacuum Gauge | 2-2146-05X |
| Capacitance Manometers and Capatitance Diaphragm Vacuum Gauges |
| 通过 UL 61010-1 认证 |
| 通过 CE 认证，符合 EN61326-1:2006 标准 |
| 通过 CAN/CSA C22.2 第 61010-1-12 号认证 |
| 通过 EAC 认证 |
| ISO 17025 accredited calibration optional |
| NIST traceable calibration optional |
MX200真空控制器
The Televac® MX200 vacuum controller, also known as a vacuum control unit or vacuum pressure controller, provides reliable and precise vacuum pressure measurements. It connects seamlessly with up to 10 passive Televac® vacuum gauges, including cold cathode, convection, piezo diaphragm, capacitance diaphragm, and thermocouple vacuum gauges. This versatile combination offers an extensive measurement range from 1*10-11 Torr to 10,000 Torr. It is well-suited for a variety of demanding applications across diverse markets, including heat treating, national laboratories, particle accelerators, cryogenics, semiconductor manufacturing, and more!
The MX200 vacuum controller includes individual 0 to 10 V DC analog outputs for each connected vacuum gauge, facilitating straightforward integration into various systems. The MX200 supports multiple gas types such as nitrogen/air, argon, hydrogen, helium, neon, krypton, and carbon dioxide, allowing you to tailor the controller to your specific vacuum application requirements.
Advanced User Interface
The MX200 vacuum controller features a user-friendly interface with six intuitive touch controls and a high-contrast OLED display. This display offers a wide 180° viewing angle and shows the measurements from up to eight connected vacuum gauges. It conveniently displays units of measurement and set point relays and automatically adjusts text size depending on the number of measurements shown, ensuring readability in various operating environments.
Modular and Customizable Design
The MX200 vacuum controller is designed to provide exceptional versatility and customization options. You can connect up to 10 Televac® vacuum gauges tailored specifically for your application. Additionally, the controller can be equipped with up to 8 optional set point relays for precise vacuum process control. To seamlessly integrate into your existing PLC system or PC, we offer multiple communication choices, including RS-232, RS-485, EthernetIP, PROFINET, and USB.
Digital Communication Options
RS-232/RS-485/USB
The standard MX200 vacuum controller includes versatile RS-232, RS-485, and USB digital communication options. These communications simplify the controller’s integration into existing PC or PLC-based systems, making it ideal for a wide range of industrial vacuum applications.
EthernetIP/USB Communication
The MX200 vacuum controller is also available with EthernetIP communication. This option integrates seamlessly into industrial Ethernet environments, allowing for efficient monitoring and control over a network. Ideal for facilities already utilizing EthernetIP protocols, this version maintains all core features, including the intuitive OLED display, analog outputs, and set point relays.
PROFINET/USB Communication
For systems that utilize PROFINET protocols, the MX200 vacuum controller is available with PROFINET digital communications. This version provides easy integration into PROFINET-based industrial automation systems, ensuring reliable and efficient data communication. It retains all standard MX200 features, including the intuitive OLED display, analog outputs, and set point relays.
Complete Vacuum Solutions
Need a passive vacuum gauge to pair with your MX200? Use our product selection guide to find the ideal solution for your application. Ready to configure and purchase your MX200 vacuum controller? Visit our MX200 Online Order Hub and get started!
