Sensor Simulators

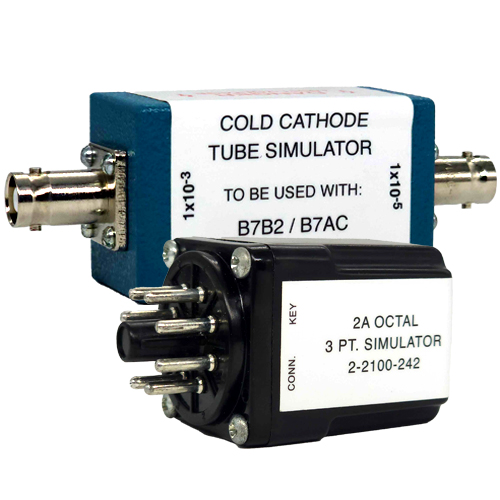

Sensor simulators are designed to electrically simulate TELEVAC sensors at specific pressures. These units allow for simple troubleshooting of issues relating to cabling, sensors, and electronics. We offer simulators for the TELEVAC 2A, 4A, 7B, 7E, and 7F. Part numbers for each are listed below.

2A Thermocouple Simulators

2A Simulator Octal Zero (Red Line, 0 microns)2-2100-237
2A Simulator Octal 3 Point (0, 100, 1000 microns)2-2100-242

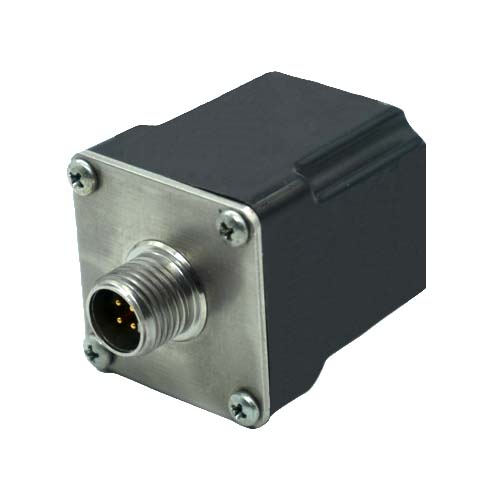

Mini 2A Simulator 3 Point (0, 100, 1000 microns)2-2100-241
Mini 2A Simulator Zero (Red Line, 0 microns)6-2100-240
4A Convection Simulators

4A Simulator Octal Zero (Red Line, 0 microns)2-2119-000
4A Simulator Octal 3 Point (0, 1 ,760 Torr)2-2119-003
7B, 7E, 7F Cold Cathode Simulators

7B Simulator 2 Point (1*10-3 and 1*10-5 Torr)2-2100-93

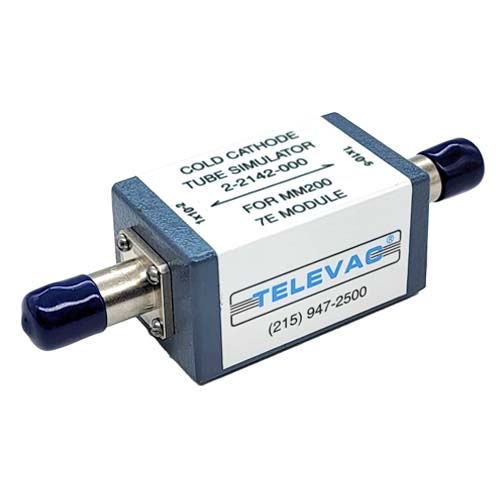

7E Simulator 2 Point (1*10-2 and 1*10-5 Torr)2-2142-000

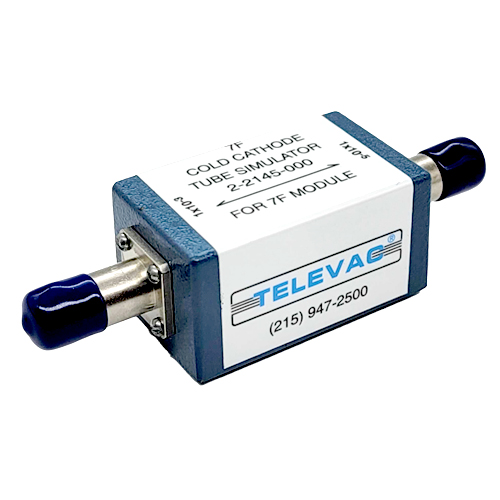

7F Simulator 2 Point (1*10-3 and 1*10-5 Torr)2-2145-000
Simulators with Customer Specified Values

2A Simulator Octal (1 to 30 microns)6-2100-237

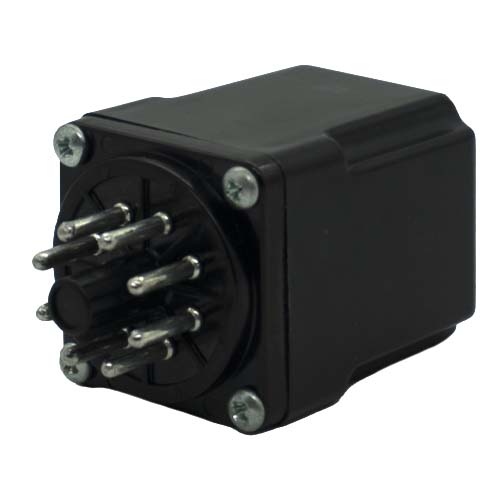

2A Simulator Octal (31 to 180 microns)6-2100-243
2A Simulator Octal (181 to 1000 microns)6-2100-245
Mini 2A Simulator (1 to 30 microns)6-2100-240
Mini 2A Simulator (31 to 180 microns)6-2100-244

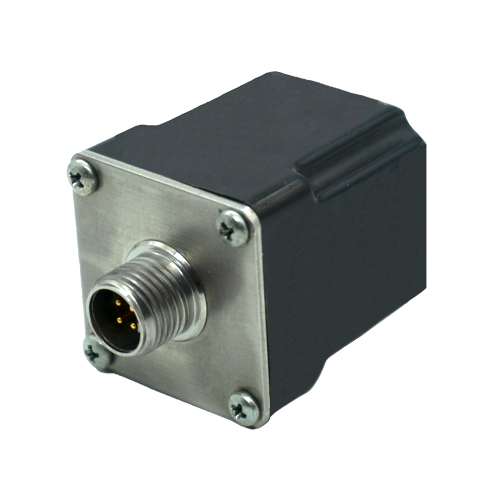

Mini 2A Simulator (181 to 1000 microns)6-2100-246

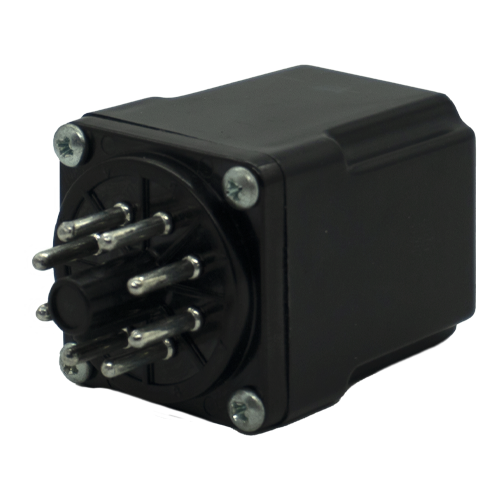

4A Simulator to Customer Specification (One Point)6-2119-000
